型号 ltem no | 尺寸 Dimension（mm） | 说明 Exlanation | |||||||

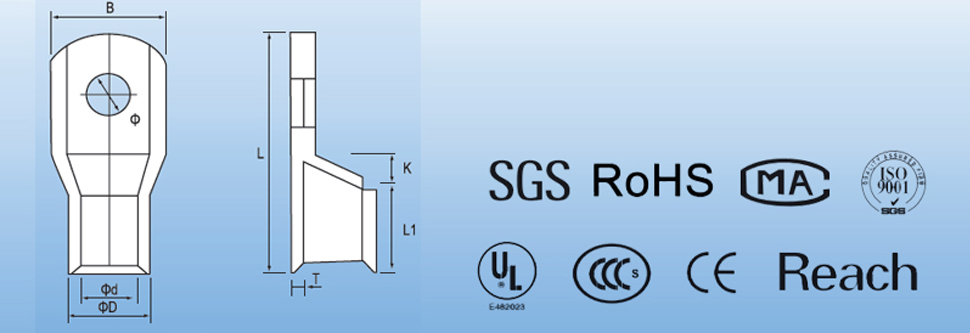

| DΦ | dΦ | L1 | K | B | Φ | T | L | ||
| SC 1.5-4 | 3.5 | 2.1 | 5.0 | 1.2 | 7.5 | 4.3 | 1.3 | 18.0 | 窥口系列铜接线端头（DTGA）型端头材料：T2无缝铜管 |
| SC 1.5-5 | 7.5 | 5.3 | 18.0 | ||||||
| SC 1.5-6 | 10.0 | 6.5 | 20.0 | ||||||
| SC 2.5-4 | 4.0 | 2.6 | 7.0 | 1.2 | 7.5 | 4.3 | 1.3 | 20.0 | |
| SC 2.5-5 | 7.5 | 5.3 | |||||||
| SC 2.5-6 | 9.0 | 6.5 | |||||||
| SC 4-4 | 4.8 | 3.4 | 7.0 | 1.2 | 9.0 | 4.3 | 1.3 | 20.0 | |
| SC 4-5 | 5.3 | ||||||||
| SC 4-6 | 6.5 | ||||||||
| SC 6-5 | 5.5 | 4.1 | 9.0 | 1.2 | 9.0 | 5.3 | 1.3 | 23.0 | |
| SC 6-6 | 9.0 | 6.5 | 23.0 | ||||||
| SC 6-8 | 12.0 | 8.5 | 25.0 | ||||||
| SC 10-6 | 7.0 | 5.4 | 9.5 | 1.5 | 10.3 | 6.5 | 1.5 | 25.0 | |
| SC 10-8 | 12.3 | 8.5 | 1.5 | 28.3 | |||||
| SC 10-10 | 14.0 | 10.5 | 1.4 | 29.0 | |||||
| SC 16-6 | 8.0 | 6.0 | 13.0 | 2.0 | 11.5 | 6.5 | 1.9 | 31.0 | |
| SC 16-8 | 11.5 | 8.5 | 31.0 | ||||||
| SC 16-10 | 15.0 | 10.5 | 34.0 | ||||||
| SC 25-6 | 9.0 | 7.0 | 13.5 | 3.0 | 13.0 | 6.5 | 1.9 | 34.0 | |
| SC 25-8 | 13.0 | 8.5 | 34.0 | ||||||
| SC 25-10 | 15.0 | 10.5 | 37.0 | ||||||
| SC 25-12 | 18.0 | 13.0 | 39.0 | ||||||
| SC 35-6 | 10.5 | 8.2 | 15.0 | 4.0 | 15.0 | 6.5 | 1.8 | 38.0 | |
| SC 35-8 | 15.0 | 8.5 | 2.3 | 38.0 | |||||
| SC 35-10 | 15.0 | 10.5 | 2.3 | 38.0 | |||||
| SC 35-12 | 18.0 | 13.0 | 2.3 | 40.0 | |||||
| SC 50-6 | 12.4 | 9.8 | 18.0 | 5.0 | 18.0 | 6.5 | 2.2 | 43.5 | |
| SC 50-8 | 18.0 | 8.5 | 2.5 | ||||||
| SC 50-10 | 18.0 | 10.5 | 2.5 | ||||||
| SC 50-12 | 19.0 | 13.0 | 2.5 | ||||||
| SC 70-8 | 14.7 | 11.9 | 19.0 | 5.0 | 21.7 | 8.5 | 2.5 | 50.0 | |
| SC 70-10 | 10.5 | 2.7 | |||||||
| SC 70-12 | 13.0 | 2.7 | |||||||
型号 ltem no | 尺寸 Dimension（mm） | 说明 Exlanation | |||||||
| DΦ | dΦ | L1 | K | B | Φ | T | L | ||
| SC 70-14 | 14.7 | 11.9 | 19.0 | 5.0 | 21.7 | 15.0 | 2.7 | 55.0 | 窥口系列铜接线端头 （DTGA）形 端头材料： T2 无缝铜头 |
| SC 70-16 | 24.8 | 17.0 | |||||||
| SC 95-8 | 17.0 | 13.4 | 22.0 | 6.5 | 25.0 | 8.5 | 3.5 | 57.0 | |
| SC 95-10 | 10.5 | ||||||||
| SC 95-12 | 13.0 | ||||||||
| SC 95-14 | 15.0 | ||||||||
| SC 95-16 | 17.0 | ||||||||
| SC 120-10 | 19.0 | 15.0 | 25.0 | 7.5 | 27.0 | 10.5 | 3.9 | 62.0 | |
| SC 120-12 | 13.0 | ||||||||
| SC 120-14 | 15.0 | ||||||||
| SC 120-16 | 17.0 | ||||||||
| SC 150-8 | 21.0 | 16.0 | 27.0 | 10.0 | 30.0 | 8.5 | 3.9 | 69.0 | |
| SC 150-10 | 10.5 | ||||||||
| SC 150-12 | 13.0 | ||||||||
| SC 150-14 | 15.0 | ||||||||
| SC 150-16 | 17.0 | ||||||||
| SC 185-12 | 24.0 | 19.0 | 32.0 | 12.0 | 34.3 | 13.0 | 4.9 | 78.0 | |
| SC 185-14 | 15.0 | ||||||||
| SC 185-16 | 17.0 | ||||||||
| SC 240-10 | 26.0 | 21.0 | 39.0 | 12.0 | 38.0 | 10.5 | 4.9 | 92.0 | |
| SC 240-12 | 13.0 | ||||||||
| SC 240-14 | 15.0 | ||||||||
| SC 240-16 | 17.0 | ||||||||
| SC 240-20 | 21.0 | ||||||||
| SC 300-16 | 30.0 | 24.0 | 43.0 | 15.0 | 43.0 | 17.0 | 5.9 | 101.0 | |
| SC 400-16 | 34.0 | 27.0 | 48.0 | 17.0 | 49.0 | 17.0 | 6.9 | 114.0 | |
| SC 500-20 | 38.0 | 30.0 | 50.0 | 20.0 | 56.0 | 21.0 | 7.9 | 124.0 | |
| SC 630-20 | 45.0 | 35.0 | 56.0 | 22.0 | 64.0 | 21.0 | 9.9 | 144.0 | |
| SC 800-20 | 50.0 | 39.0 | 78.0 | 22.0 | 73.0 | 21.0 | 10.9 | 170.0 | |
| SC 800BL | |||||||||
| SC 1000-BL | 56.0 | 44.0 | 90.0 | 22.0 | 81.0 | 11.9 | 200.0 | ||
| SC 1200-BL | 60.0 | 47.0 | 100.0 | 22.0 | 87.3 | 12.9 | 210.0 | ||
